Model Whirlpool S4257^0 – Common Parts & Diagrams

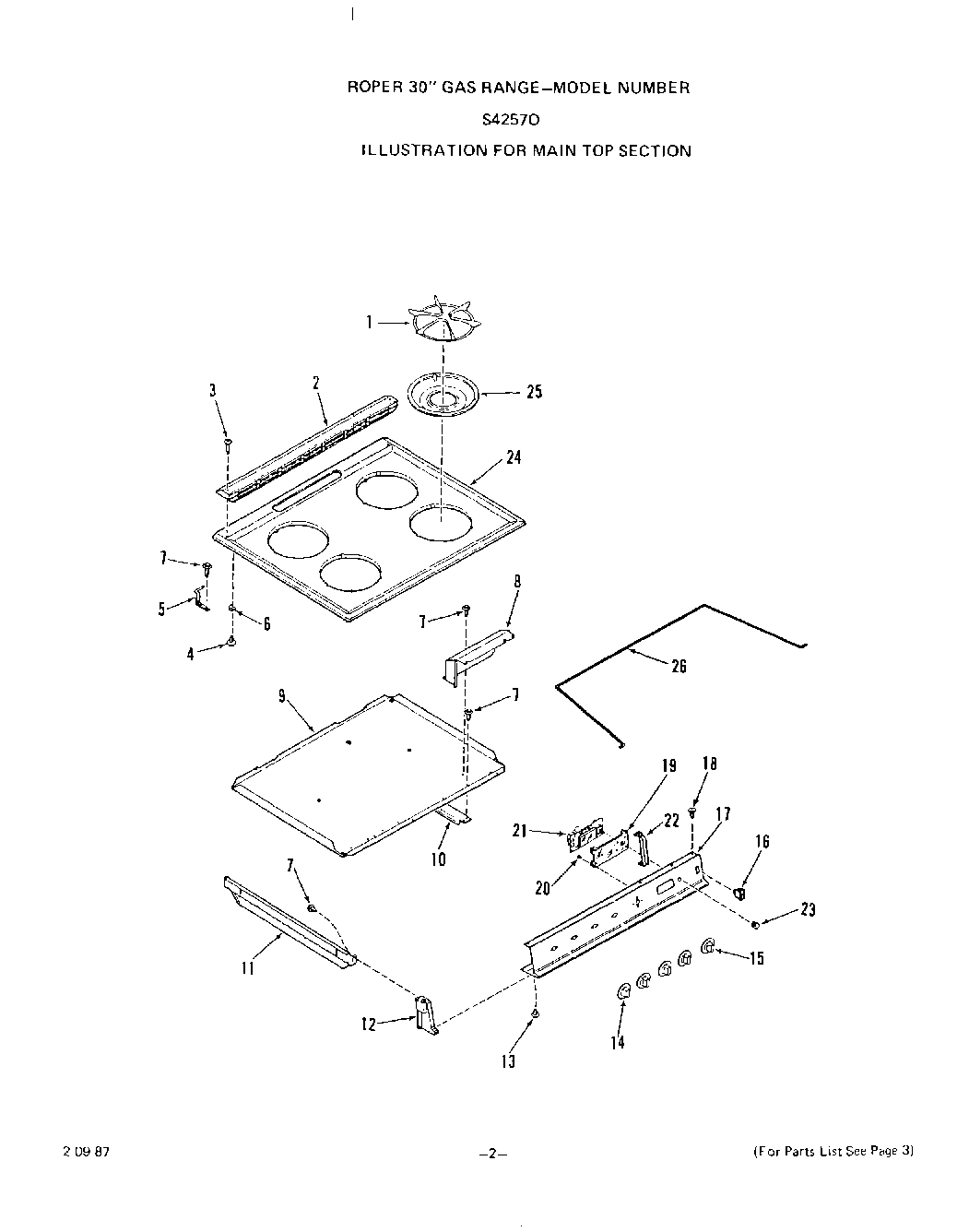

02 - MAIN TOP

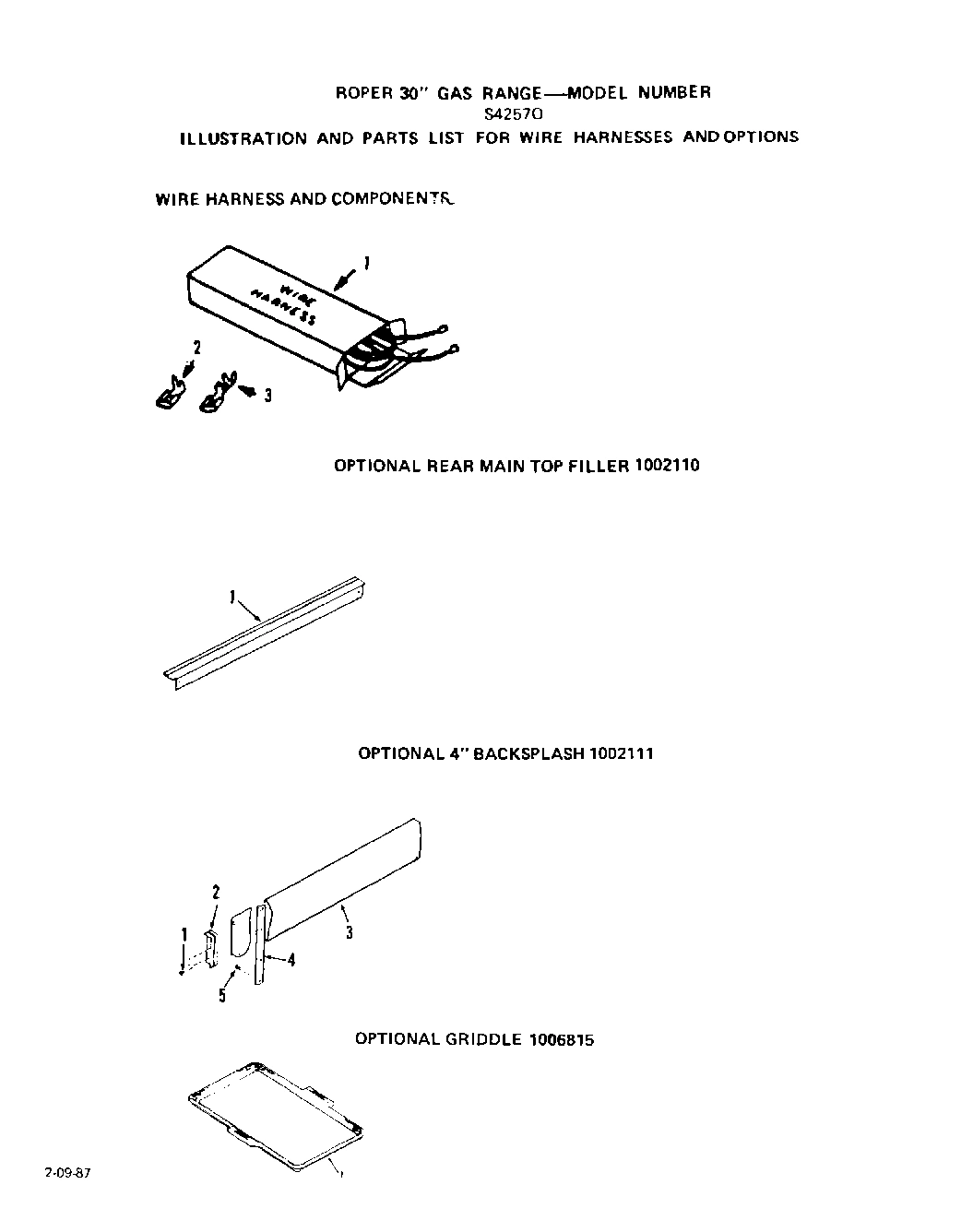

01 - WIRE HARNESS , REAR MAIN TOP FILLE

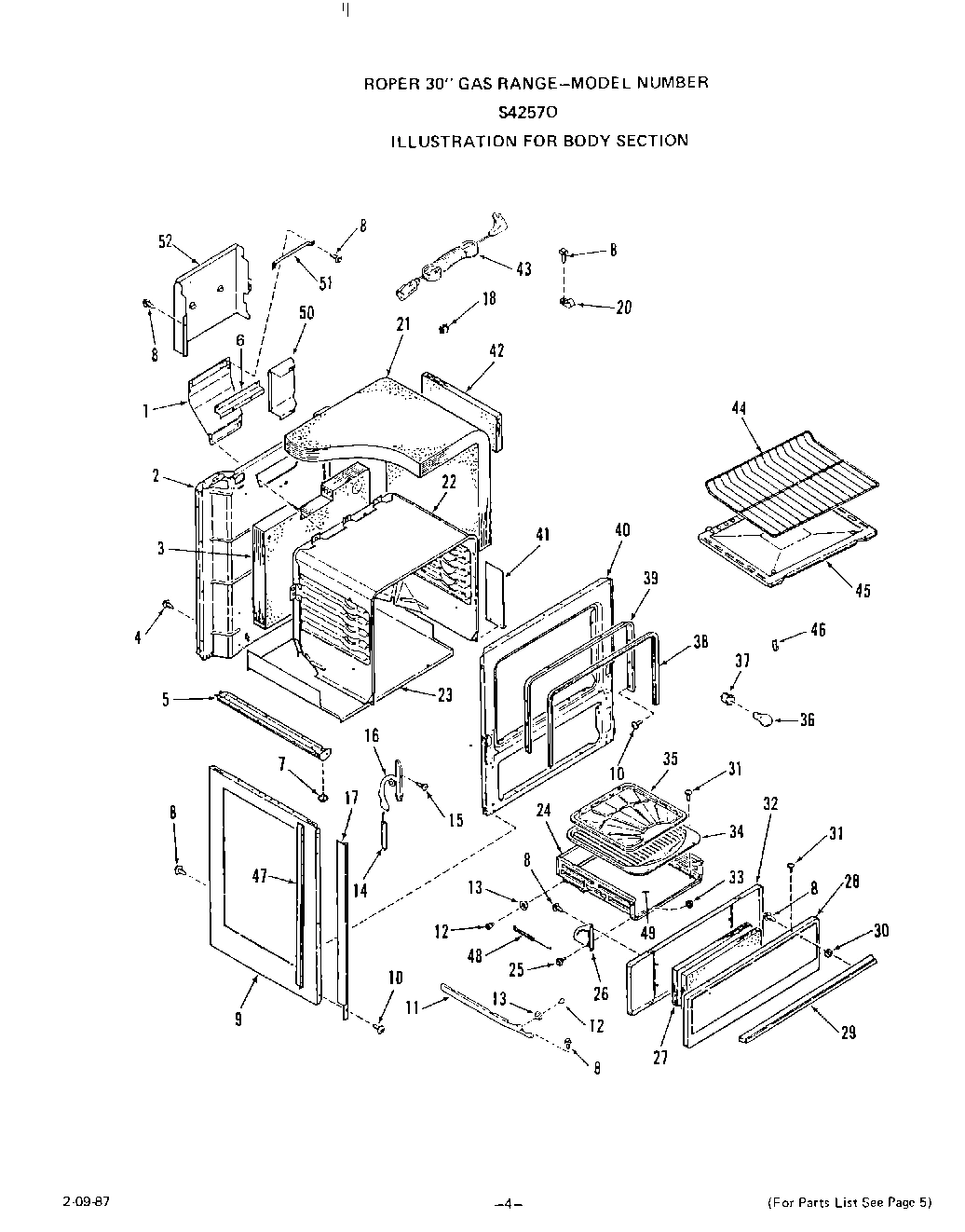

03 - BODY SECTION
05 - DOOR

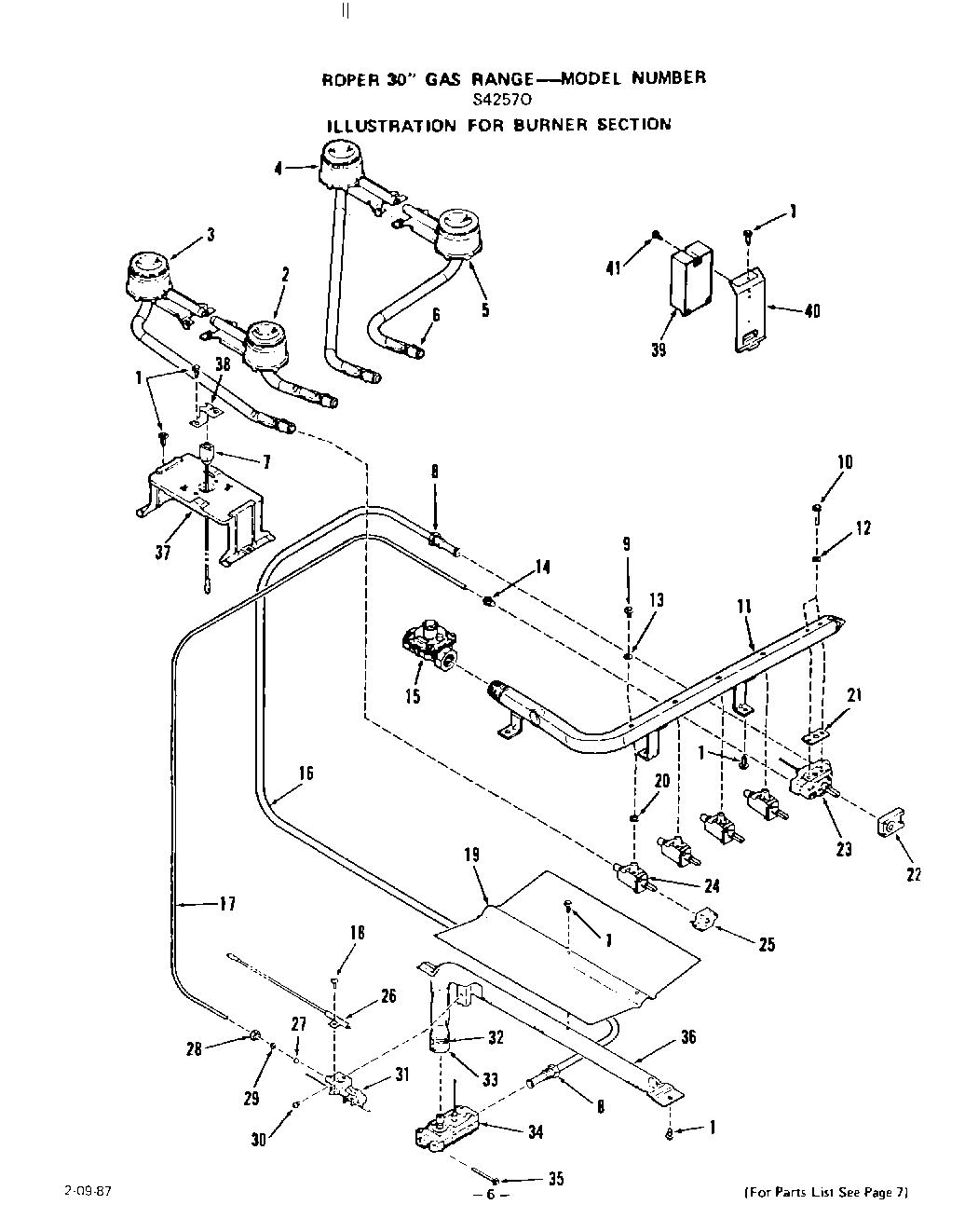

04 - BURNER
07 - SECTION
Common parts from model Whirlpool S4257^0
xInstructions Installation WPL 331267 Contact Us For Availability
xSheet Instruction WPL 331389 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI128529A Contact Us For Availability
xParts Not Shown On Illustration WPL ARI128530A Contact Us For Availability
1
Screw TC 6-32x3/8`` WPL 295268 Contact Us For Availability
1
Set-On Griddle WPL 330394 Contact Us For Availability
1
Wire Harness (Switch-Gas Valve) WPL 331174 Contact Us For Availability
1
Filler-Main Top Rear WPL 331228 Contact Us For Availability
1
Wire Harness (Oven Light) WPL 331261 Contact Us For Availability
1
Wire Harness (Module) WPL 331275 Contact Us For Availability
1
Top Grate (4 Req) WPL 330242 Contact Us For Availability
1
Flue Deflector WPL 330398 Contact Us For Availability
2
Flag Terminal 1/4`` WPL 238389 Contact Us For Availability
2
End Cap WPL 330339 Contact Us For Availability
2
Cover-Vent WPL 330738 Contact Us For Availability
2
Burner-Top (Left Front) WPL 330350 Contact Us For Availability
2
Main Back WPL 330677 Contact Us For Availability
3
Faston Terminal (3/16``) WPL 238392 Contact Us For Availability
3
Faston Terminal (1/4``) WPL 238393 Contact Us For Availability
3
Backsplash WPL 331387 Contact Us For Availability
3
Screw 6-32 WPL 332285 Contact Us For Availability
3
Burner-Top (Left Rear) WPL 330488 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
4
Backplash Support WPL 330331 Contact Us For Availability
4
Screw 10-32x5/16`` WPL 286628 Contact Us For Availability
4
Burner-Top (Right Rear) WPL 330489 Contact Us For Availability
5
Hinge-Main Top (Right) WPL 332345 Contact Us For Availability
5
Hinge-Main Top (Left) WPL 332346 Contact Us For Availability
5
Burner-Top (Right Front) WPL 330351 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 334971 Contact Us For Availability
6
Bracket-Hinge WPL 335161 Contact Us For Availability
6
Shutter-Air (4 Req.) WPL 327198 Contact Us For Availability
6
Flue Deflector Support WPL 334528 Contact Us For Availability
7
Electrode-Spark Igniter (Right) WPL 312454 Contact Us For Availability
7
Electrode-Spark Igniter (Left) WPL 327216 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Cover-Wire WPL 330975 Contact Us For Availability
8
Nut-Inverted WPL 142433 Contact Us For Availability
9
Burner Box Bottom WPL 330386 Contact Us For Availability
9
Screw 1/4``-20 WPL 311455 Contact Us For Availability
9
Body Side-Lt. or Rt. WPL 336447 Contact Us For Availability
10
Stiffener-Burner Box Bottom WPL 330558 Contact Us For Availability
10
Screw 10-24 WPL 318478 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
11
Extension-Burner Box Bottom WPL 356365 Contact Us For Availability
11
Pipe-Manifold WPL 330349 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) (Right) WPL 296327 Contact Us For Availability
12
End Cap-Manifold Panel (Left) WPL 330344 Contact Us For Availability
12
End Cap-Manifold Panel (Right) WPL 330345 Contact Us For Availability
12
Gasket WPL 318658 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
13
Gasket WPL 304241 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Knob-Gas Valve (4 Req) WPL 336366 Contact Us For Availability
14
Nut Loxit 3/16`` WPL 79673 Contact Us For Availability
14
Spring-Oven Door (Lt. or Rt.) WPL 334722 Contact Us For Availability
15
Knob-Thermostat WPL 336368 Contact Us For Availability
15
Regulator WPL 324528 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
16
Switch-Oven Light WPL 334649 Contact Us For Availability
16
Tubing-3/8``-Thermostat/Valve WPL 295037 Contact Us For Availability
16
Hinge-Oven Door (Right) WPL 329653 Contact Us For Availability
16
Hinge-Oven Door (Left) WPL 329654 Contact Us For Availability
17
Manifold Panel WPL 336352 Contact Us For Availability
17
Trim-Side (Left) WPL 330340 Contact Us For Availability
17
Trim-Side (Right) WPL 330341 Contact Us For Availability
18
Screw WPL 335967 Contact Us For Availability
18
Screw 6ABx3/8`` WPL 120855 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
19
Lens WPL 336943 Contact Us For Availability
19
Baffle - Oven Burner WPL 329316 Contact Us For Availability
20
Screw 6-32x5/16`` WPL 78153 Contact Us For Availability
20
Gasket-Valve WPL 313563 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Clock Asm WPL 335616 Contact Us For Availability
21
Gasket-control WPL 318657 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Bracket-Clock WPL 336354 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
Oven Body WPL 324957 Contact Us For Availability
23
Knob-Clock WPL 334961 Contact Us For Availability
23
Thermostat WPL 321983 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Main Top (White) WPL 334861 Contact Us For Availability
24
Main Top (Almond) WPL 334862 Contact Us For Availability
24
Valve-Top Burner WPL 324482 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12, 13) WPL 331566 Contact Us For Availability
25
Aeration Pan (4 Req) WPL 336363 Contact Us For Availability
25
Switch-Valve WPL 312457 Contact Us For Availability
25
Shoulder Bolt WPL 329271 Contact Us For Availability
26
Support Rod-Main Top WPL 336079 Contact Us For Availability
26
Igniter-Oven Burner WPL 327217 Contact Us For Availability
26
Hinge-Broiler Drawer (Right) WPL 327482 Contact Us For Availability
26
Hinge-Broiler Drawer (Left) WPL 327483 Contact Us For Availability
27
Cup-Orifice WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
Front Panel-Broiler Door WPL 332142 Contact Us For Availability
29
Sleeve-Compression 3/16`` WPL 65711 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
31
Pilot WPL 318486 Contact Us For Availability
31
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
32
Screw-Adjustment WPL 312989 Contact Us For Availability
32
Lining-Broiler Door WPL 331567 Contact Us For Availability
33
Shutter-Air WPL 312988 Contact Us For Availability
33
Keps Nut 10-24 WPL 074056 Contact Us For Availability
34
Valve-Safety WPL 322814 Contact Us For Availability
34
Broiler Pan WPL 331593 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
Broiler Pan Grid WPL 331588 Contact Us For Availability
36
Burner-Oven (Inc. 19, 32, 33) WPL 329651 Contact Us For Availability
36
Oven Lamp Bulb WPL 111257 Contact Us For Availability
37
Support-Top Burner WPL 330358 Contact Us For Availability
37
Holder-Oven Lamp Bulb WPL 295974 Contact Us For Availability
38
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Module WPL 326136 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
40
Support-Module WPL 330326 Contact Us For Availability
40
Front Frame WPL 332687 Contact Us For Availability
41
Screw 13-16 x 1/2`` WPL 329676 Contact Us For Availability
41
Retainer-Insulation (Rt. or Lt.) WPL 328984 Contact Us For Availability
43
Range Service Cord WPL 235822 Contact Us For Availability
44
Rack-Oven (2 Required) WPL 326068 Contact Us For Availability
45
Bottom-Oven (1426 Models) WPL 327084 Contact Us For Availability
45
Bottom-Oven (1416 Models) WPL 331539 Contact Us For Availability
46
Thermostat Bulb Clip (2 Req WPL 115533 Contact Us For Availability
47
WPL 331512 WPL 331512 Contact Us For Availability
48
WPL 327481 WPL 327481 Contact Us For Availability
49
WPL 331554 WPL 331554 Contact Us For Availability
50
WPL 333657 WPL 333657 Contact Us For Availability
51
WPL 331815 WPL 331815 Contact Us For Availability
52
WPL 330338 WPL 330338 Contact Us For Availability
× ![]()
